1:50 Scale Coach House Model

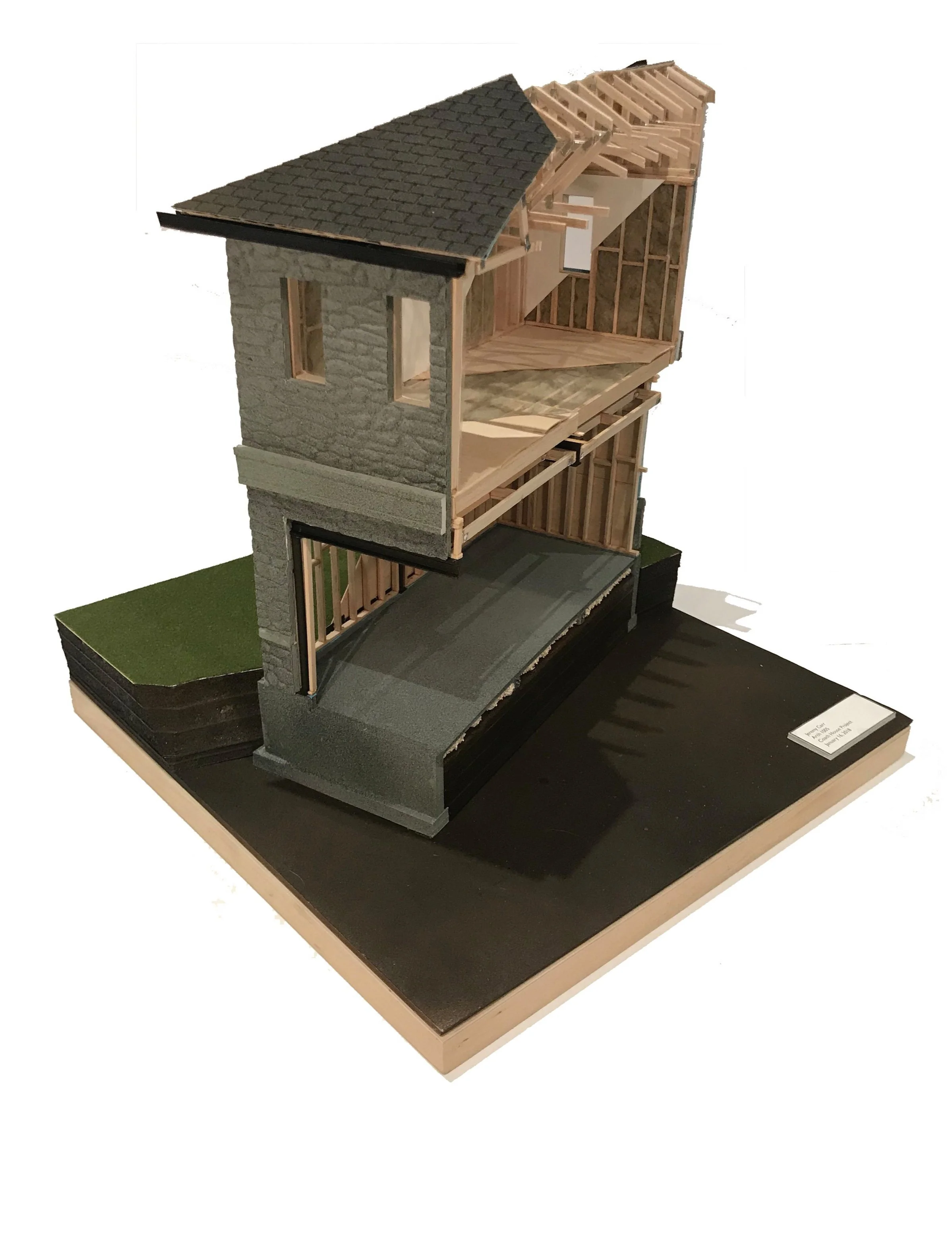

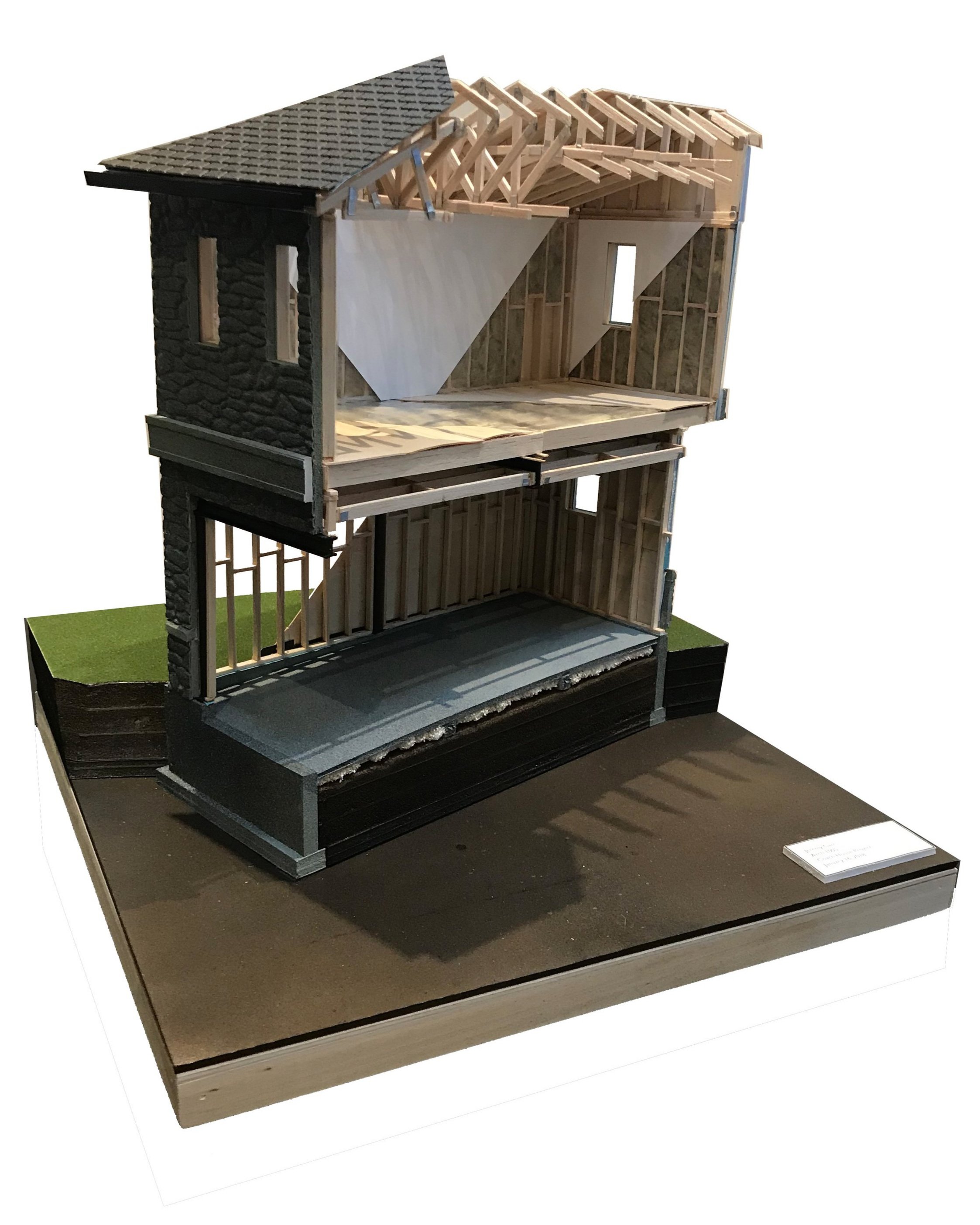

At the beginning of the six-semester Architectural Technology program, we explored and applied rudimentary building science concepts by practicing basic delineation and drafting skills as we prepared sketches. An extensive study of wood-frame and small-building construction was undertaken, working from footings up to roofs and including a comprehensive review of materials and connection conditions along the way. The hand drafting of each detail as we progressed upward from the foundation accompanied this analysis. At the end of the first semester, we were assigned to construct a physical 1:50 scale model of a portion of a supplied structure, implementing all of the knowledge we had acquired throughout the semester. Working from plans, sections and elevations, and using balsa wood, card stock and foam core, a Coach House model was fabricated down to the smallest detail at scale, as we concurrently produced, managed and archived the project documentation.
Interior

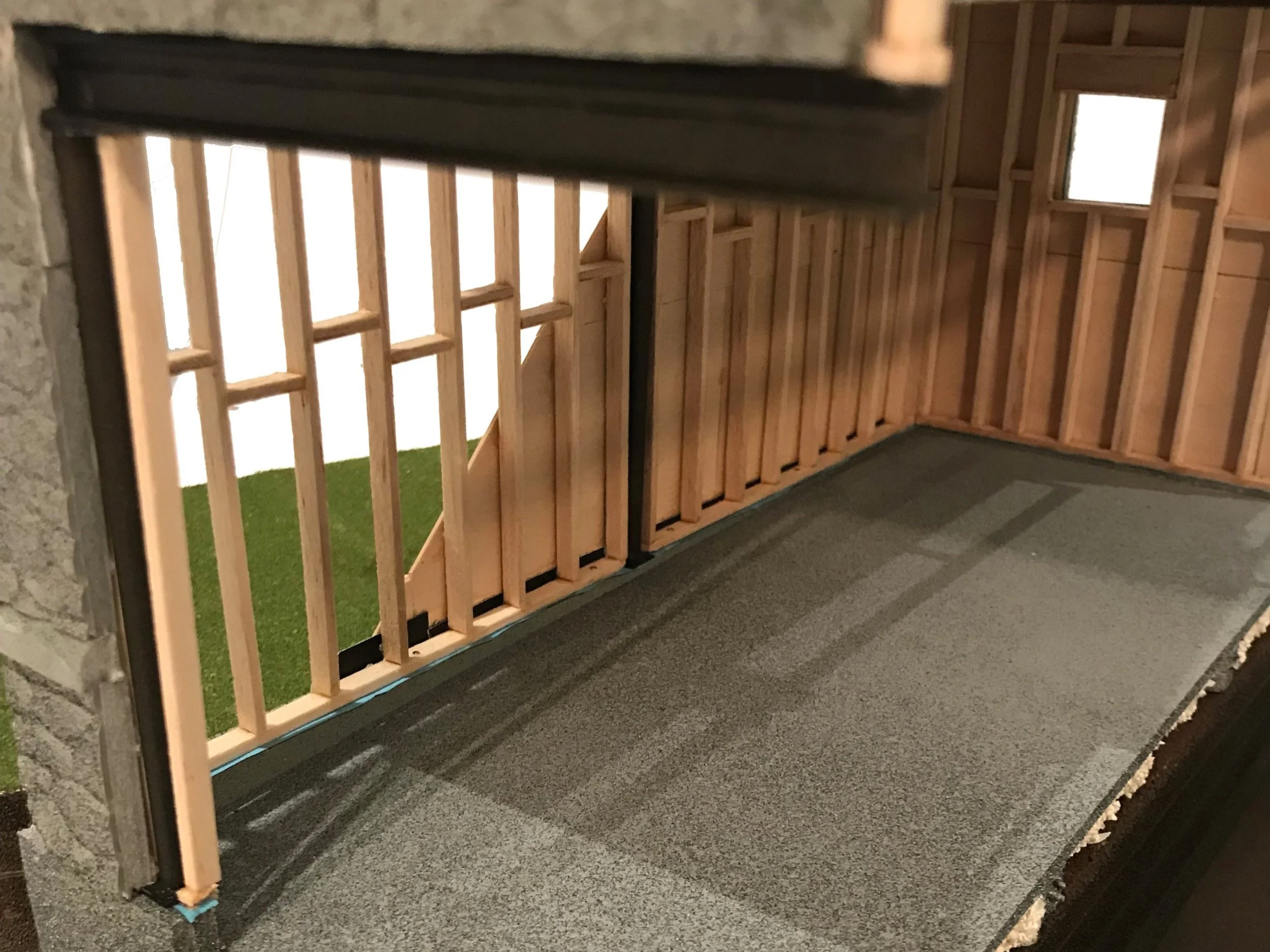

Garage Slab & Un-insulated Wall Assembly Detail

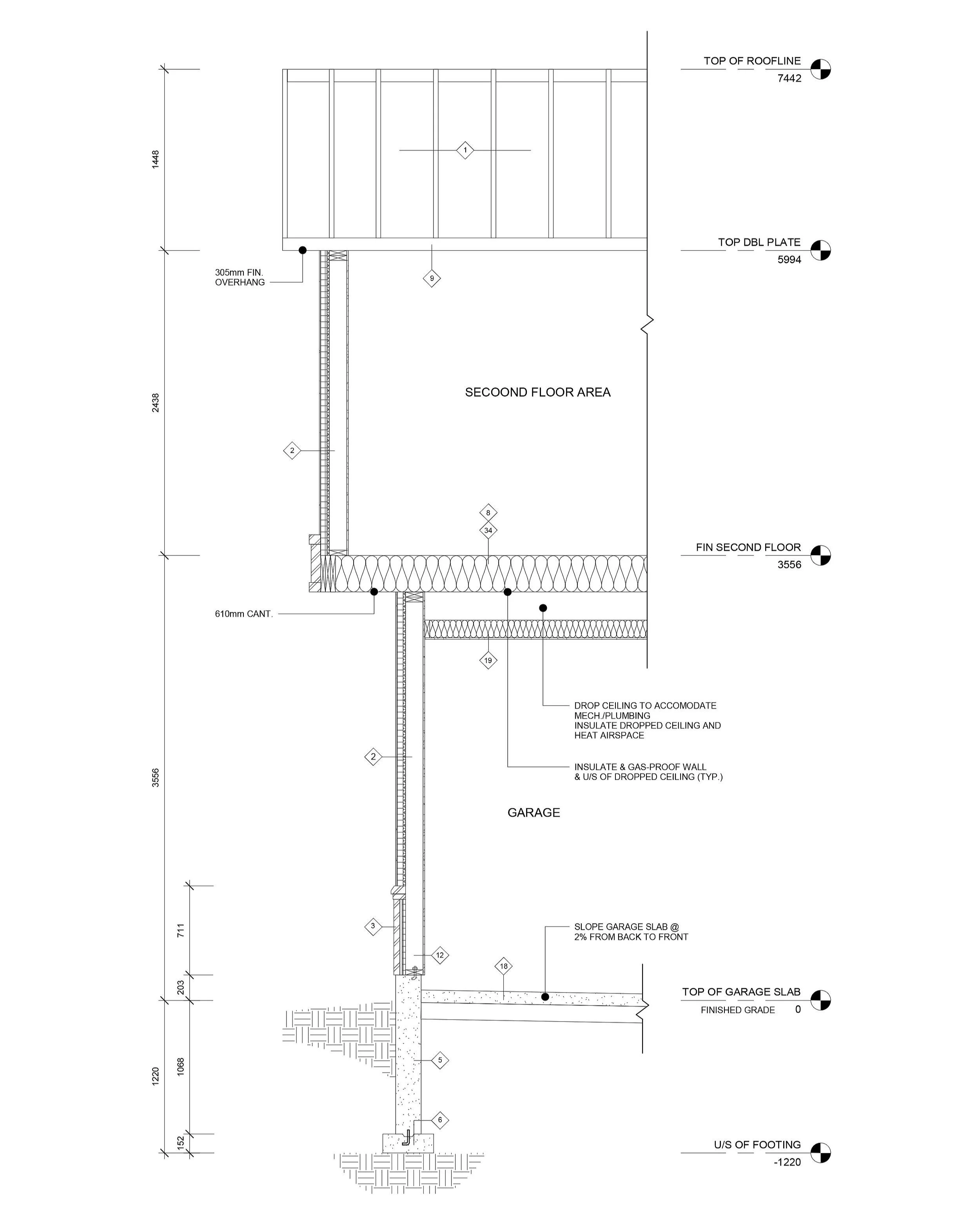

Rear Garage Wall Section

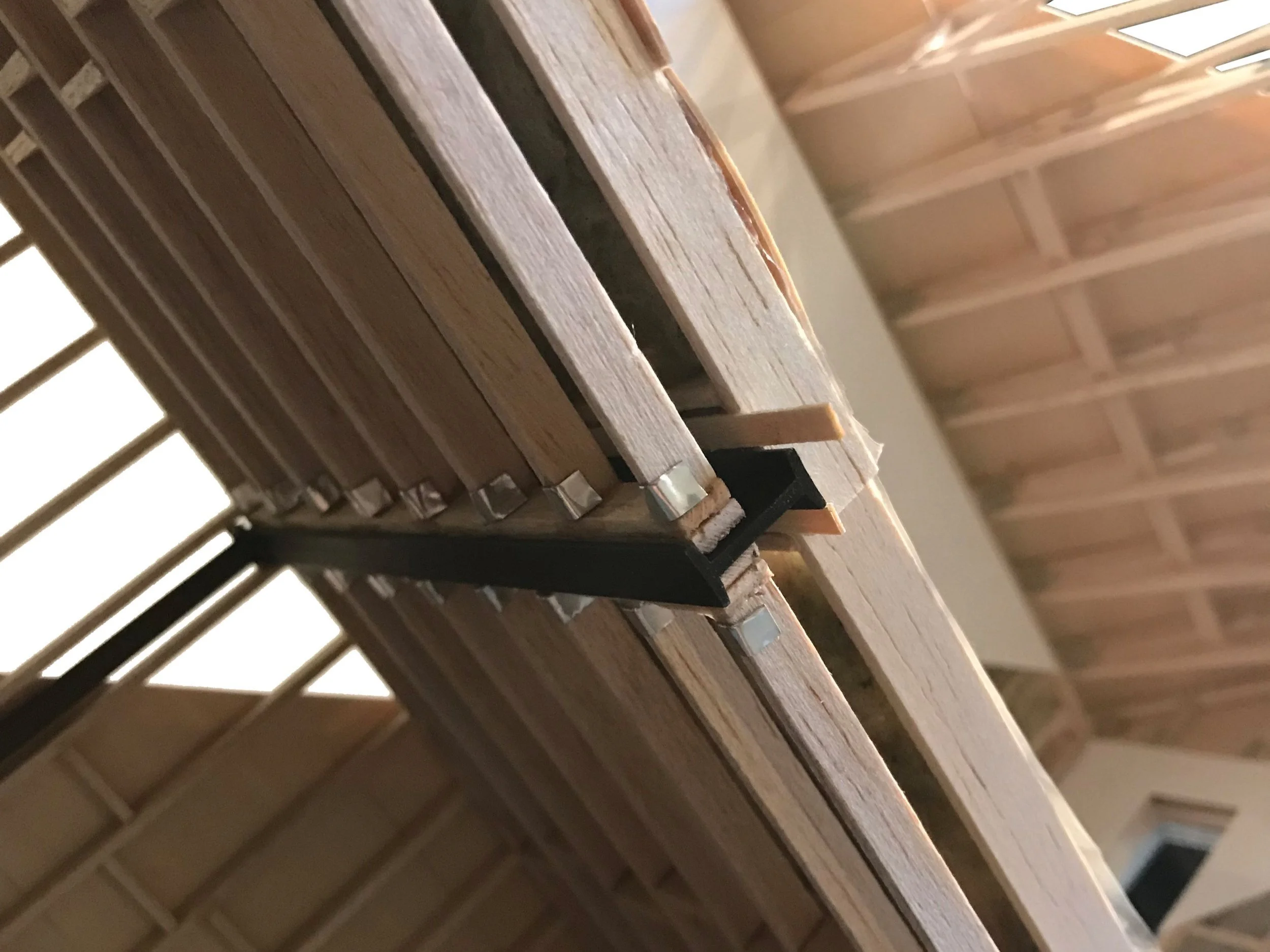

Dropped Beam & Structural Steel Post Detail
Roof Materials & Trusses Detail

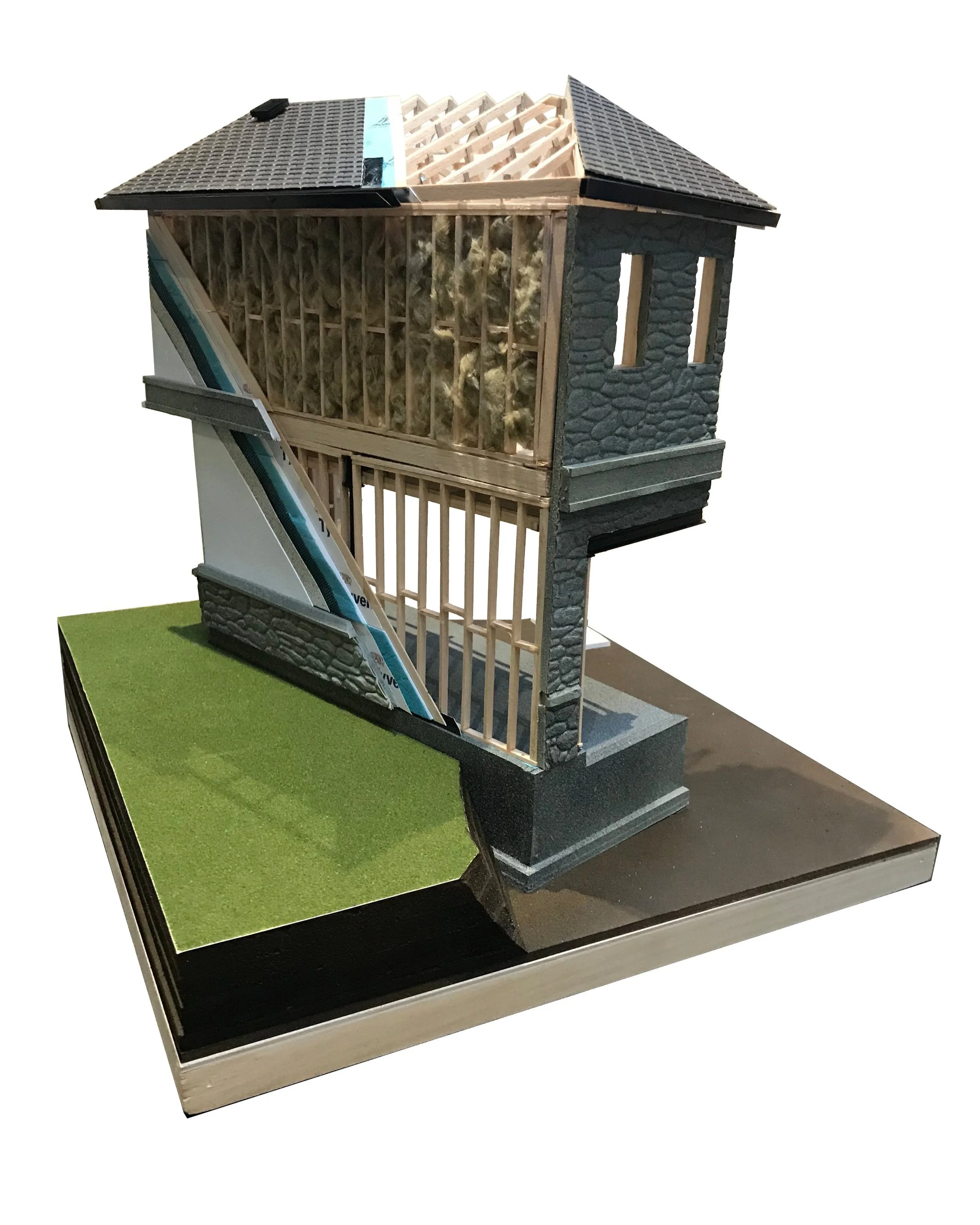

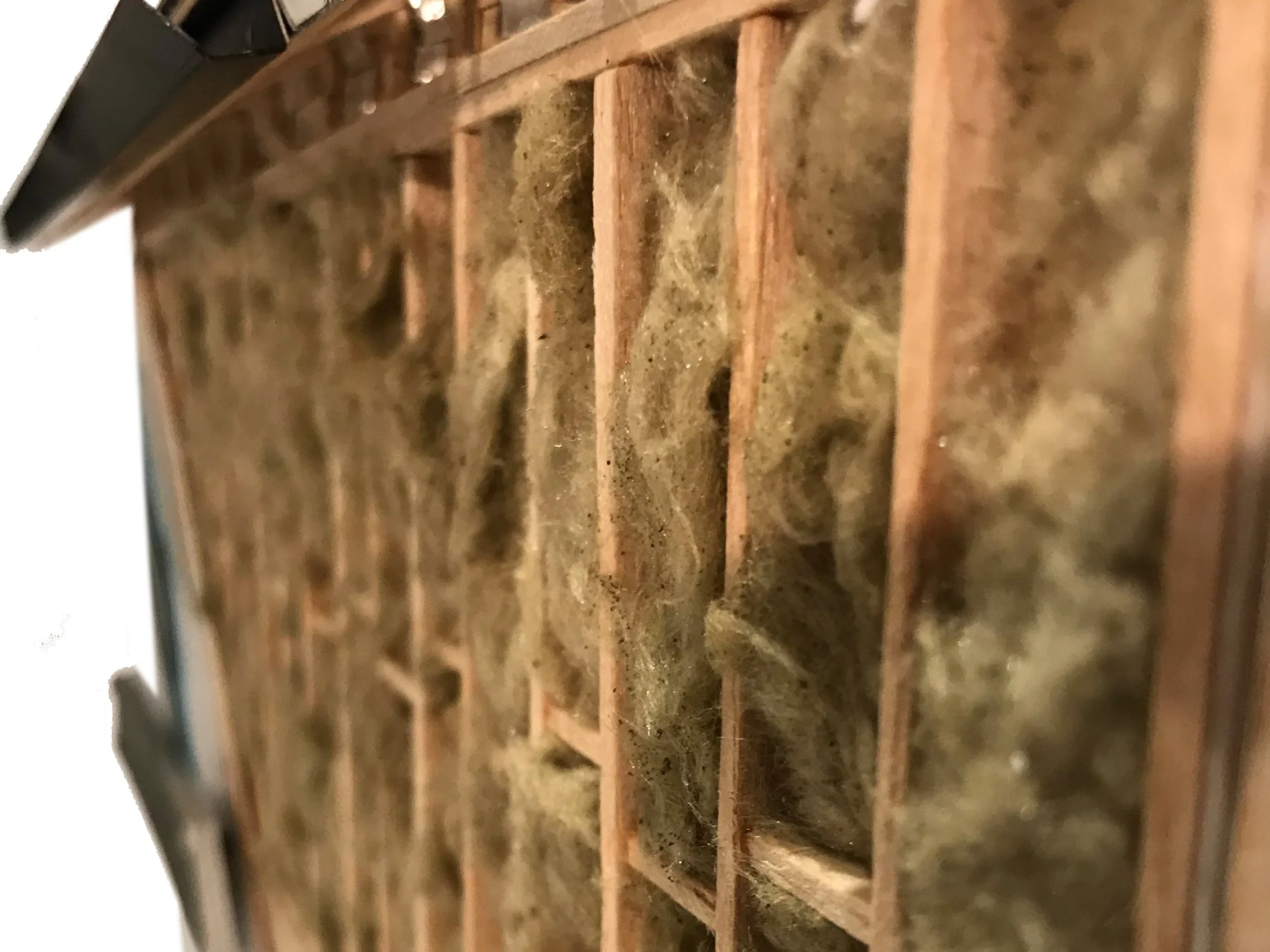

Exterior Wall Insulation Detail

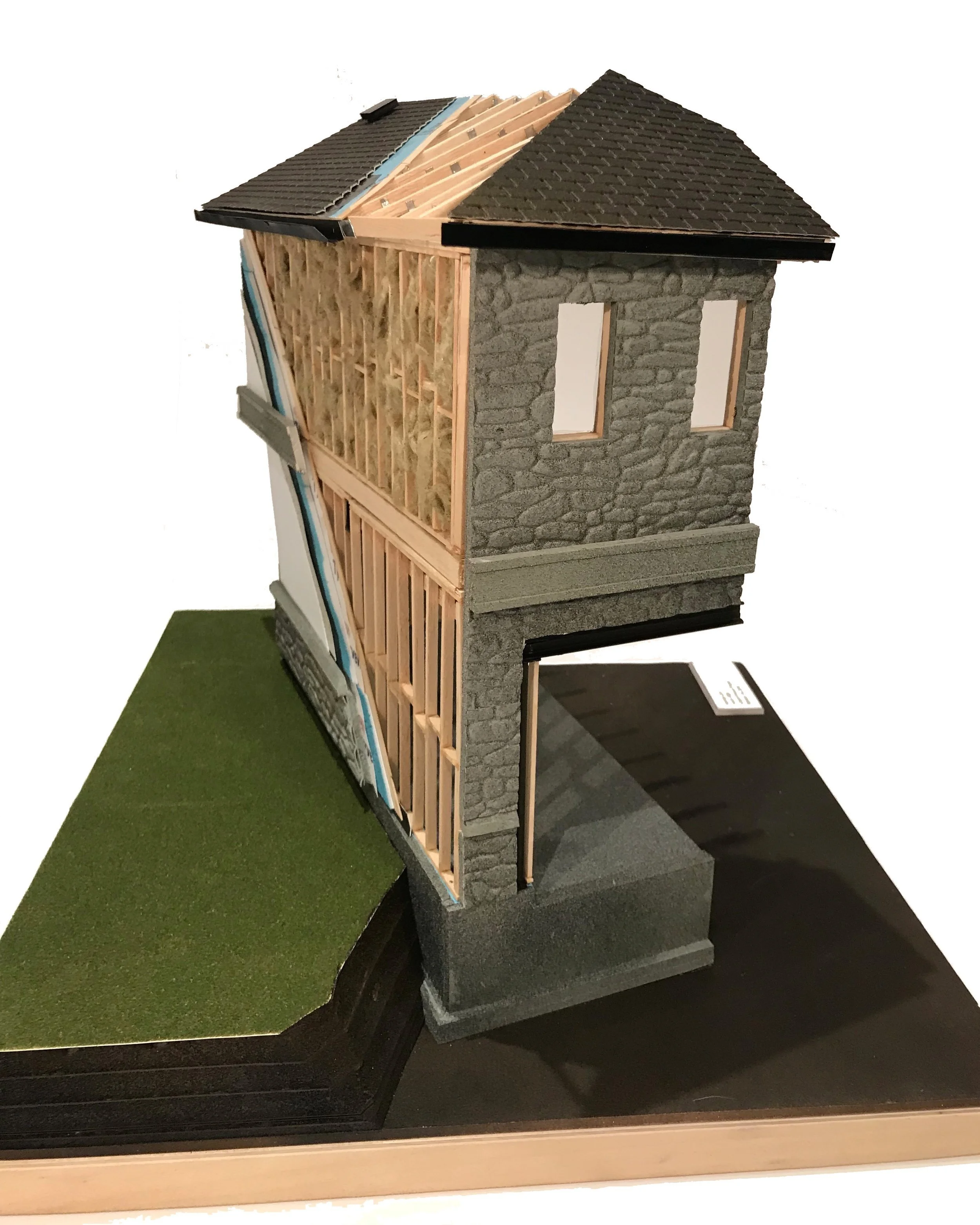

Side with Exposed Wall Assembly

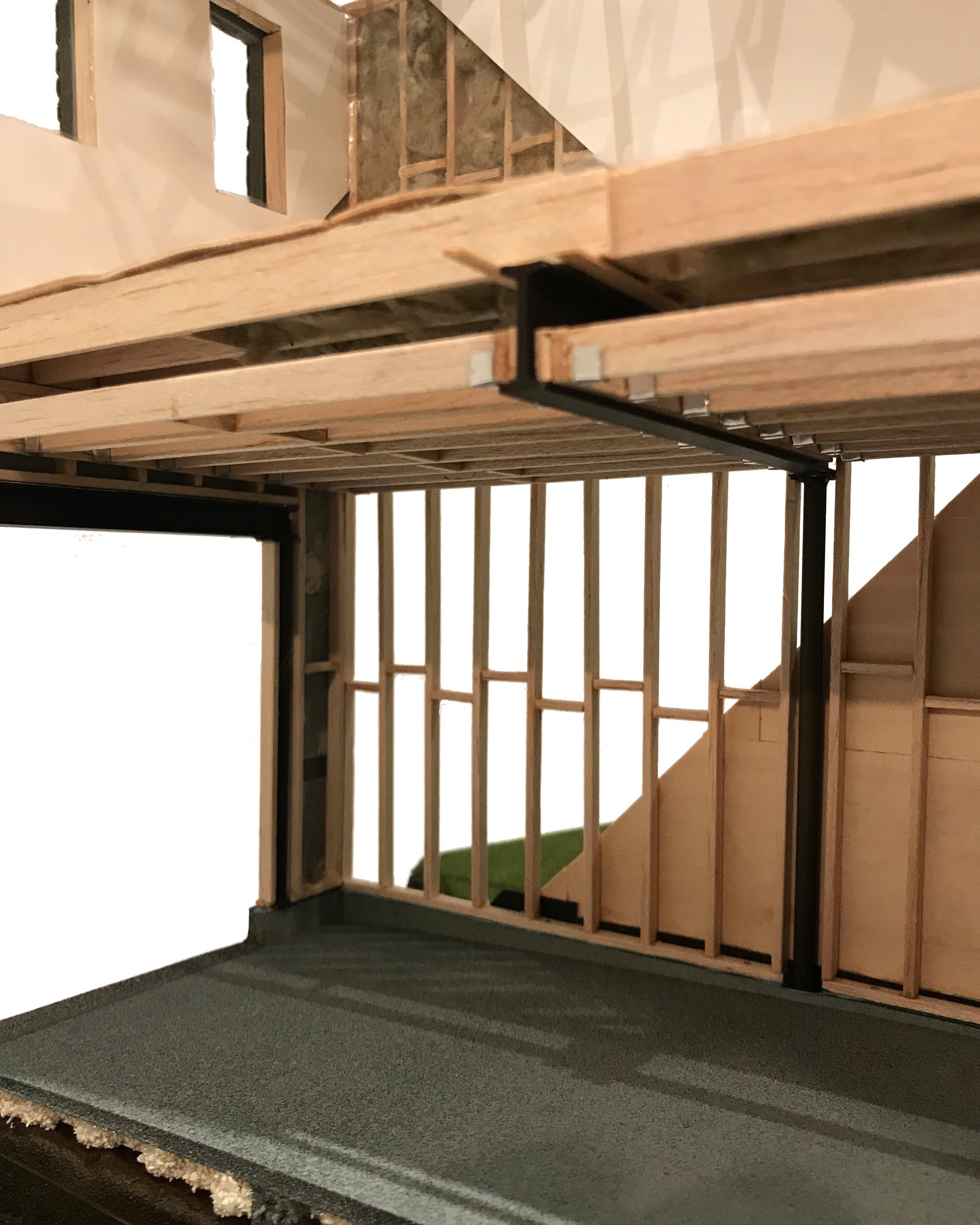

Dropped Ceiling with Beam
Front Facade
